Steico Protect (Pallet)

Data Sheet

Brief Overview

BOARDS ONLY ON PALLET

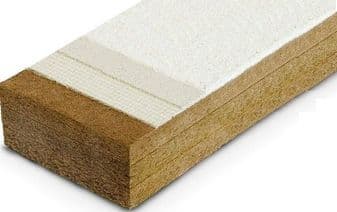

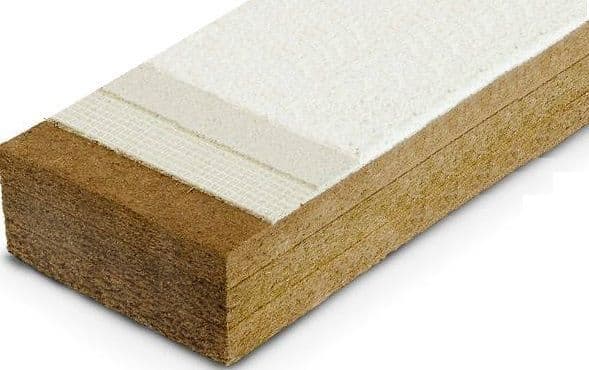

Steico Protect is a natural render carrying wood fibre insulation board with a tongue and groove profile manufactured in accordance with EN 13171, designed as an external sheathing board for timber frame constructions or for direct to masonry applications in external wall insulation systems where the render is applied directly to the board.

It is quite common for architects and designers to specify Protect boards in certain building applications and in combination with a separately specified finish or render system, this is why we sell the boards individually and not just as part of our Ecomerchant EWI Protect System. When sold separately as individual boards Ecomerchant offer no guarantees or warranties for Protect when used in conjunction with renders, plasters or finishes.

Steico Protect Boasts:

• Water vapour open system
• Suitable for use with direct render systems
• Part of a full system of components
• Reduces thermal bridging through the structure
• Excellent thermal characteristics in both the summer and winter
• Tongue & groove profile contributes to building airtightness
• Improves the acoustic performance of the structure
• Good fire resistance
• Simple and economic on site handling
• Sustainable and FSC® certified
• Manufactured from forest thinnings and small diameter logs
• An essential component of the Steico External Thermal Insulation Composite System
• Provides additional insulation on the external facade
• Suitable for use in new build or renovation
• Significantly reduces cold bridging through the structure
• Removes the need for a ventilated cavity allowing for thinner wall constructions
• Boards tongue and grooved on all four sides for better airtightness
• Boards available in thicknesses of 40, 60 and 80mm
• Excellent insulation properties in summer and winter
• Improves sound insulation
• Up to 90 minutes fire protection available

  Board Format	Thickness [mm]	Max Pieces / Pallet	Weight /[kg/m²]	m² / Pallet	Weight / Pallet [kg]
  1325 * 600 mm	40	92	10,00	42,95	ca. 480
  1325 * 600 mm	60	62	15,00	29,15	ca. 480
  1325 * 600 mm	80	46	16,8	22,82	ca. 383

Available in 40mm, 60mm & 80mm

We reccommend calling us to order this product, especially if you require a specific number of boards. Call the team at 01469 531 227 or 07743 362 408.
